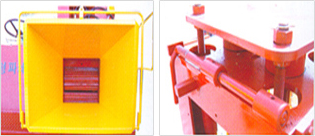

Committing Area (Log insertion)

Vertical pressure commitment method using a saddle springVertical operation of a roller with a large diameter helps easy commitment of thick wood. The width of the committing area is three times bigger than the cutting area so that any type and size of wood may be committed.

The roller pressure is divided into a saddle spring installed in four places, creating strong pressure and preventing the leaning of logs in one direction. Logs in such a fixed state minimizes damage of the blades, producing wood chips with stable particles.

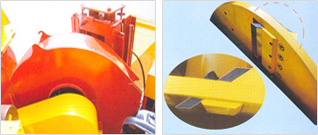

Cutting Area (Disk-type cutting device)

Disk-type cutting device with an enhanced processing ability of blade and responsiveness for chipping weight (Registered utility model) Cutting device with two functions of wood chipping and the delivery of wood chips. Refurbishment of the chipping blade can be carried out multiple times without decreasing blade strength.

Even when the blade is damaged, the disk cutter can be used permanently.
Chipping weight is received by the chipping blade, preventing destruction of fixed bolts or blades from bouncing off. Adjustment of the width between blades is easy, enabling multiple refurbishments./p>

360° direction discharging device Outlet can be turned around in all directions without the use of special equipment, enabling discharge of chipped wood in all directions.
